Treluce Light

NARCIA R U-T366-COB4

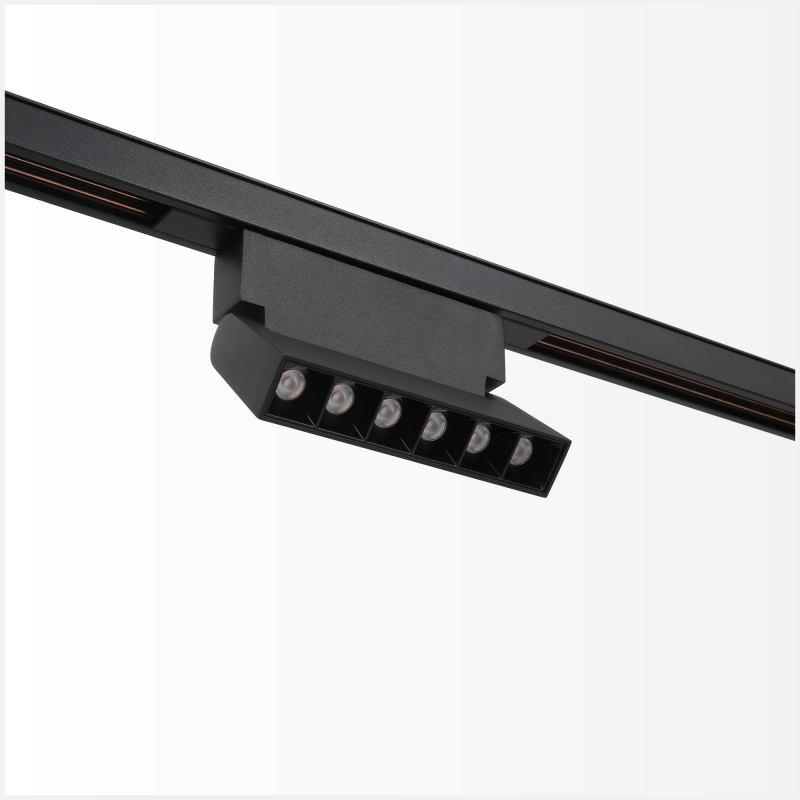

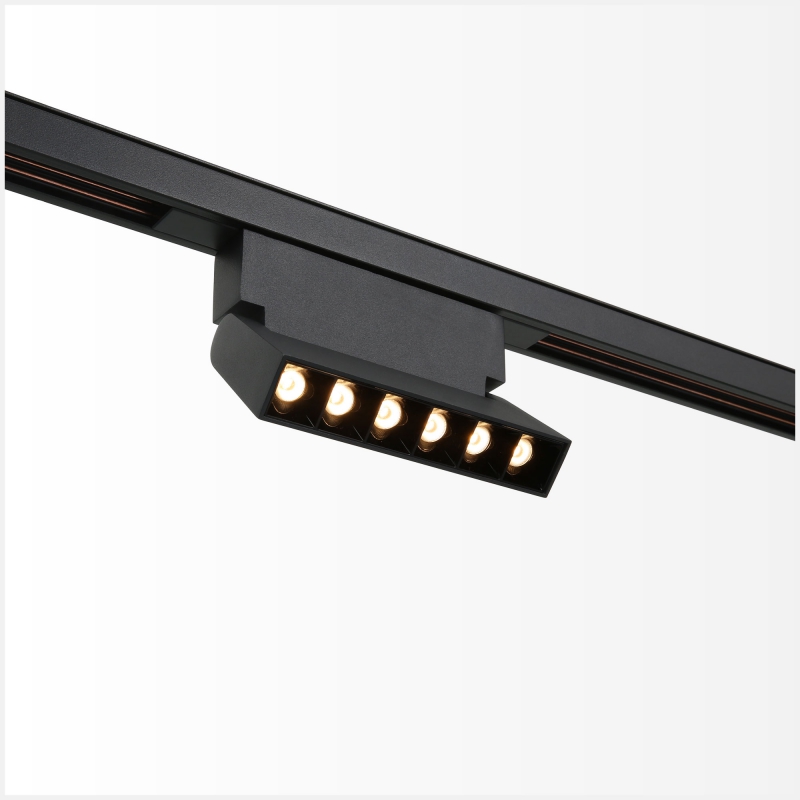

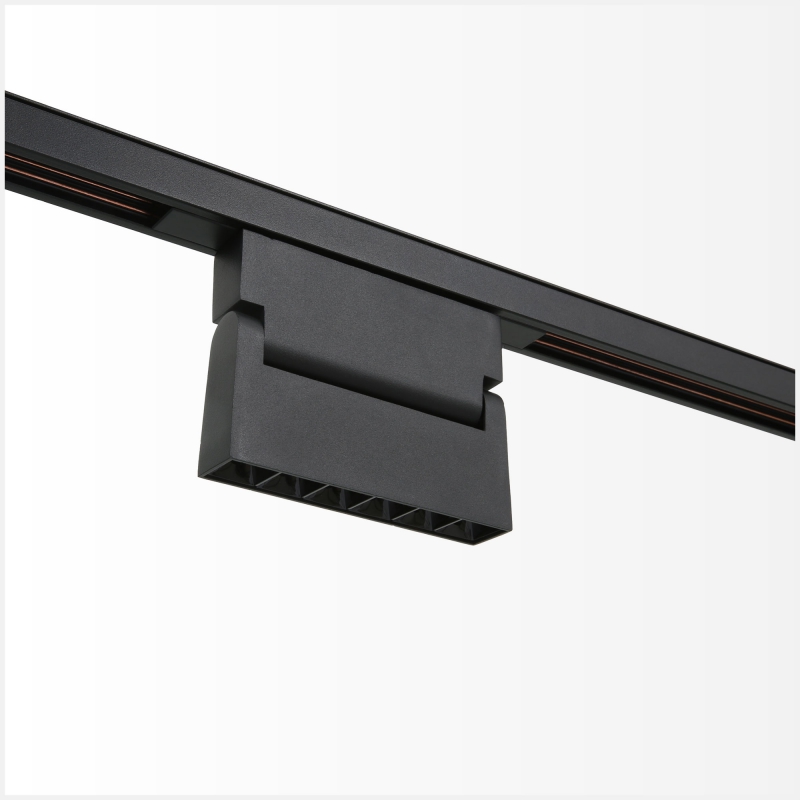

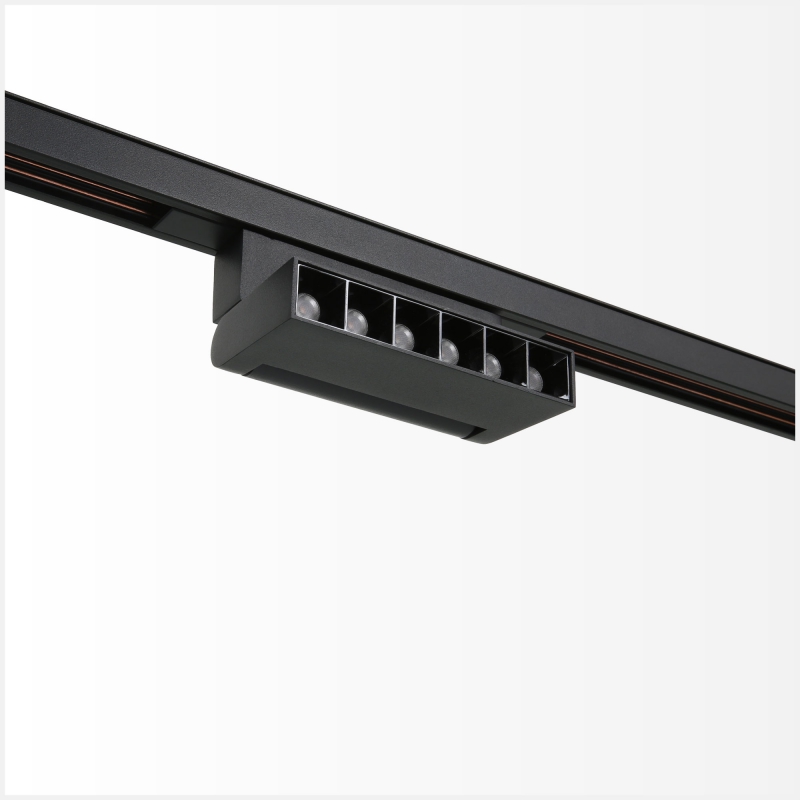

Narcia-R family provides excellent flexibility with its movable body. Track mounted 48V low voltage spotlight with light body in extruded aluminium. No-dazzle screen. Easy to insert and remove from the track. Versatile aiming angle tiltable vertically 90°. Available in different configurations.

Supply: 48 V-DC
lllumination Type: Direct
Dimming Protocol:
Dimmable by 1/10 V
Dimmable by DALI
On-Off

REFERENCE

Lighting Effects

24°

48°

Optic Angle	24°
Optic Angle	48°

Code	Power	Lumen	CRI	Color of Light
U-T366-COB4-80-27	6x1 W	430 lm	Ra>80	2700 K
U-T366-COB4-80-30	6x1 W	436 lm	Ra>80	3000 K
U-T366-COB4-80-40	6x1 W	445 lm	Ra>80	4000 K
U-T366-COB4-90-27	6x1 W	416 lm	Ra>90	2700 K
U-T366-COB4-90-30	6x1 W	420 lm	Ra>90	3000 K
U-T366-COB4-90-40	6x1 W	426 lm	Ra>90	4000 K
