Treluce Light

HI-TECH HT-005

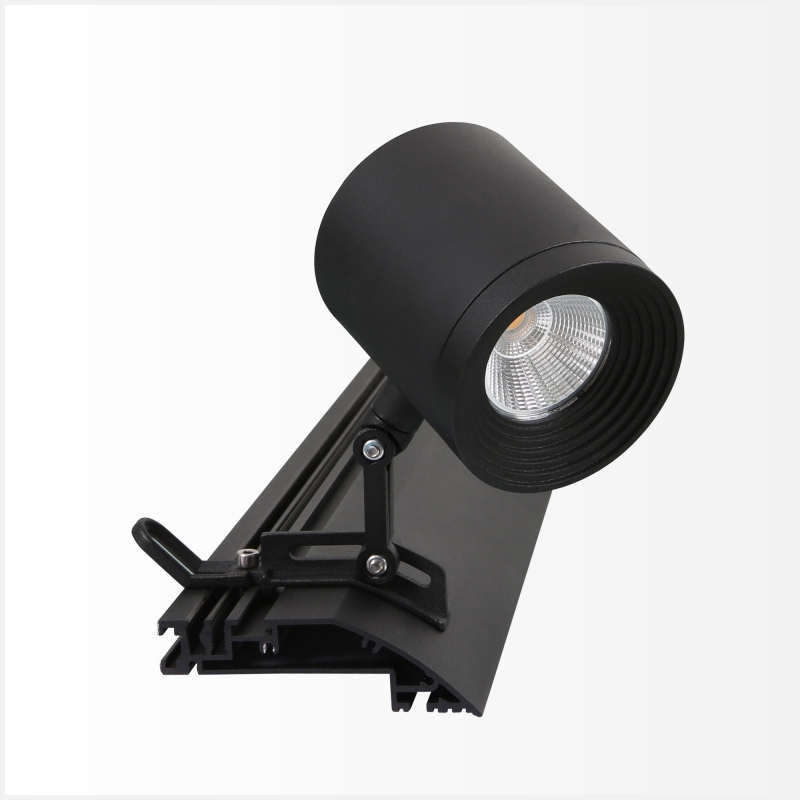

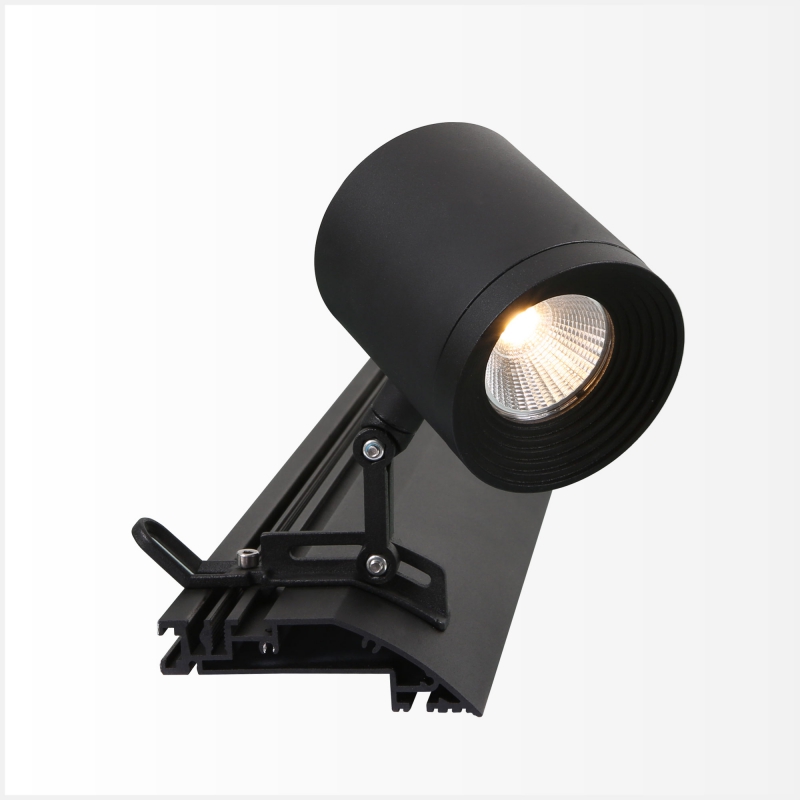

A structural system integrated into the architecture, which permits mounting direct and indirect lighting gear. Lighting system comprising an extruded profile which integrates perfectly in plasterboard ceilings. It is prepared for the simple integration of lighting with LED projectors. The projectors are prepared for installation directly on the profile, with Class II remote equipment. Furthermore, they are available in two sizes depending on the installation. It has accessories for visual comfort optimization. * Orientable inner body with decorative caps. * Fixture complete with electronic control gear.

Supply: 110-240 V
lllumination Type: Direct
Dimming Protocol:
Not Dimmable
Dimmable on Mains
Dimmable by 1/10 V
Dimmable by DALI
Accesories:
Cap B
Cap G
Cap W
Honeycomb Louvre HCL
Linear Spread LS
Filterglas
Dichroic Filters

REFERENCE

Lighting Effects

24°

36°

48°

Optic Angle	24°
Optic Angle	36°
Optic Angle	48°

Code	Power	Lumen	CRI	Color of Light
HT-005-80-27	6,1 W	784 lm	Ra>80	2700 K
HT-005-80-30	6,1 W	817 lm	Ra>80	3000 K
HT-005-80-40	6,1 W	850 lm	Ra>80	4000 K
HT-005-90-27	6,1 W	654 lm	Ra>90	2700 K
HT-005-90-30	6,1 W	681 lm	Ra>90	3000 K
HT-005-90-40	6,1 W	729 lm	Ra>90	4000 K
HT-005-1-80-27	8,9 W	1089 lm	Ra>80	2700 K
HT-005-1-80-30	8,9 W	1134 lm	Ra>80	3000 K
HT-005-1-80-40	8,9 W	1179 lm	Ra>80	4000 K
HT-005-1-90-27	8,9 W	908 lm	Ra>90	2700 K
HT-005-1-90-30	8,9 W	946 lm	Ra>90	3000 K
HT-005-1-90-40	8,9 W	1013 lm	Ra>90	4000 K
