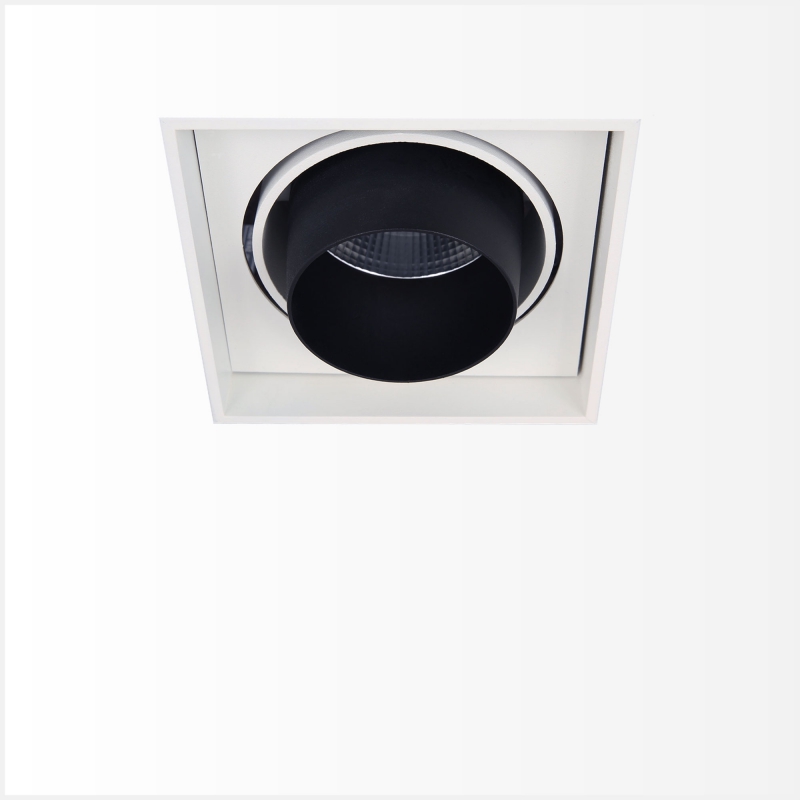

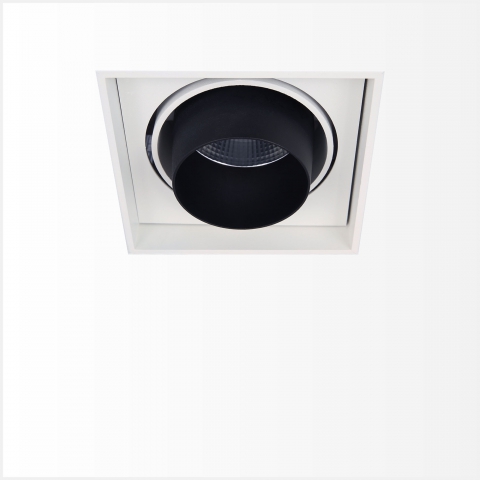

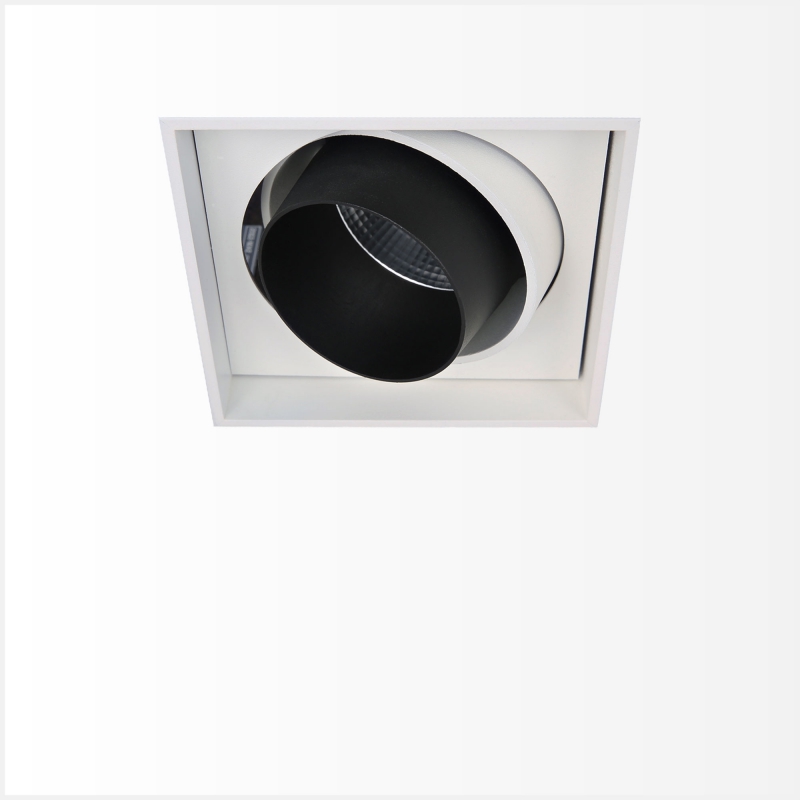

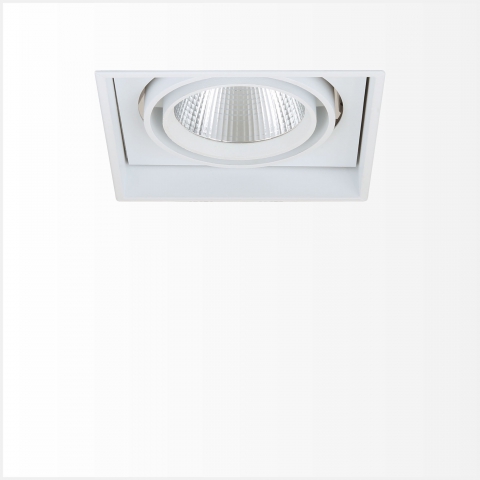

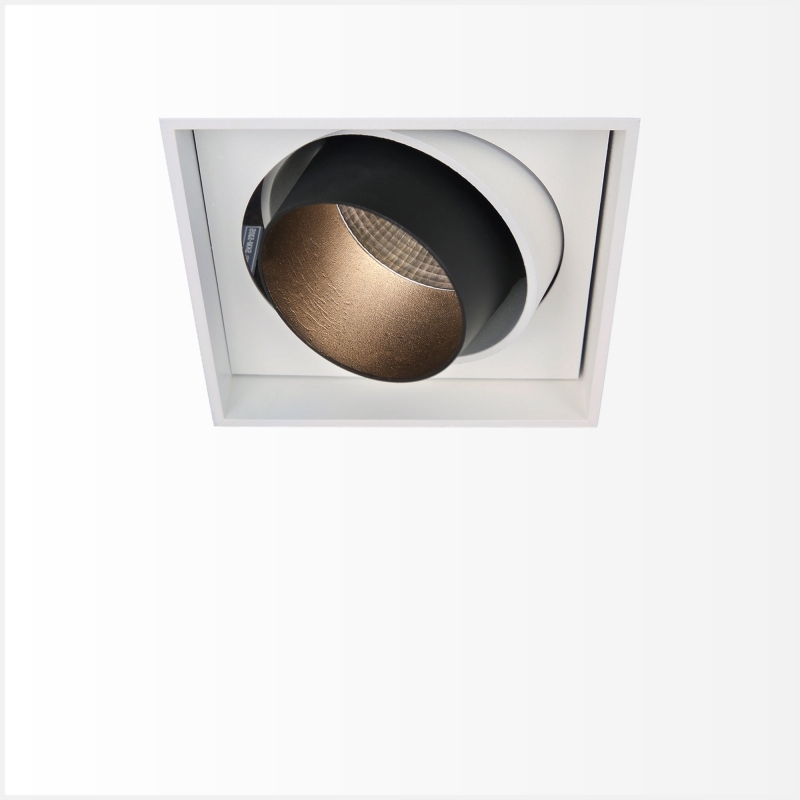

BALDER LT-16.0103-S
- * Thinner trim makes Balder stand our from any other rectangular shaped lighting device

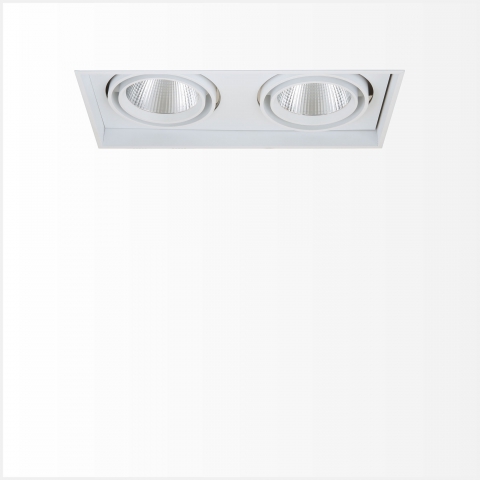

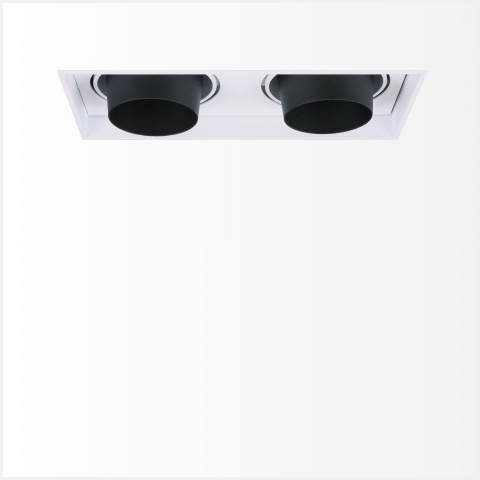

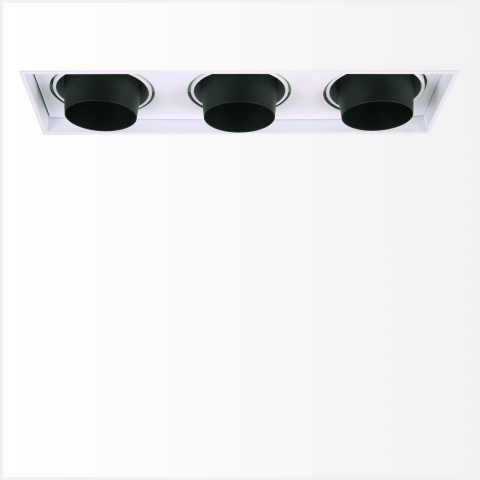

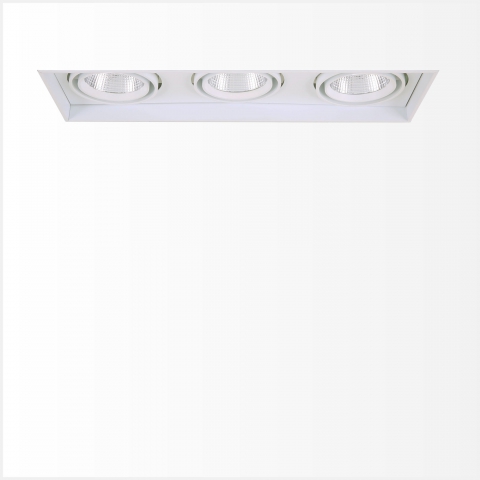

* BODY: Die-cast aluminium; available in single, double, and triple versions in trimless body.

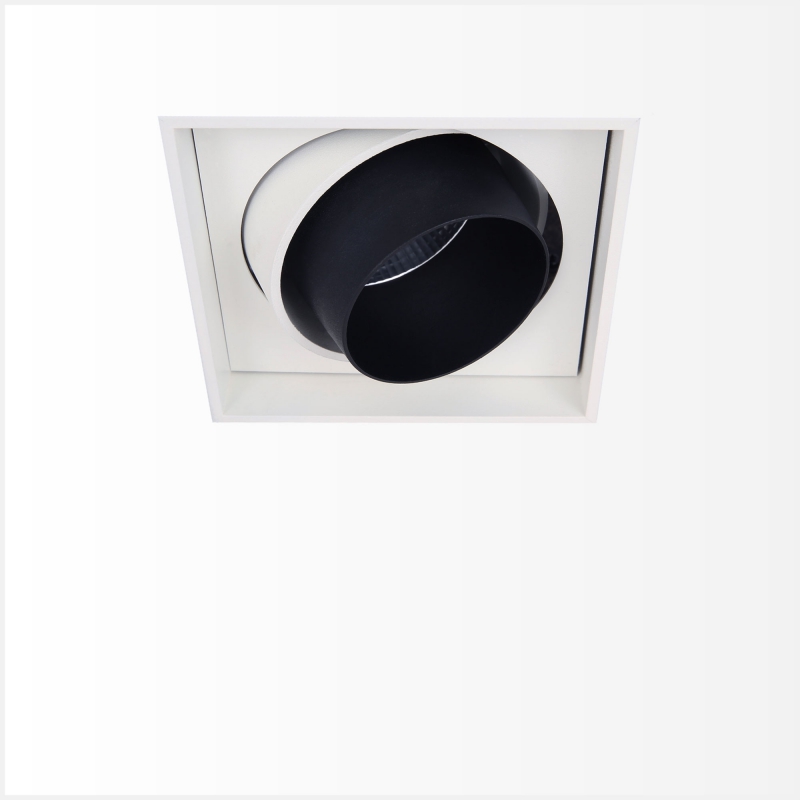

* Orientable inner body.
* Flush mount installation in false ceilings with 1 to 25 mm thickness; fixing system with steel springs. * Fixture complete with electronic control gear.
-
Supply:
110-240 V
-
lllumination Type:
Direct
-
Dimming Protocol:
Not Dimmable
-
Dimmable on Mains
-
Dimmable by 1/10 V
-
Dimmable by DALI
-
Dimmable by Wireless
-
Accesories:
Honeycomb Louvre HCL
-
Cross Baffle
-
Filterglas
-
Dichroic Filters
| Optic Angle | 16° |
| Optic Angle | 24° |
| Optic Angle | 38° |
| Weight | 1,6 kg |
| Cutout Shape | Rectangular Shape |
| Code |
Power | Lumen | CRI | Color of Light |
| LT-16.0103-S-1-27 |
11,3 W | 1109 lm | Ra>90 | 2700 K |
| LT-16.0103-S-1-30 |
11,3 W | 1168 lm | Ra>90 | 3000 K |
| LT-16.0103-S-1-40 |
11,3 W | 1226 lm | Ra>90 | 4000 K |
| LT-16.0103-S-2-27 |
16,4 W | 1551 lm | Ra>90 | 2700 K |
| LT-16.0103-S-2-30 |
16,4 W | 1633 lm | Ra>90 | 3000 K |
| LT-16.0103-S-2-40 |
16,4 W | 1714 lm | Ra>90 | 4000 K |
| LT-16.0103-S-3-27 |
23,6 W | 2109 lm | Ra>90 | 2700 K |
| LT-16.0103-S-3-30 |
23,6 W | 2220 lm | Ra>90 | 3000 K |
| LT-16.0103-S-3-40 |
23,6 W | 2331 lm | Ra>90 | 4000 K |
| LT-16.0103-S-4-27 |
30,9 W | 2634 lm | Ra>90 | 2700 K |
| LT-16.0103-S-4-30 |
30,9 W | 2773 lm | Ra>90 | 3000 K |
| LT-16.0103-S-4-40 |
30,9 W | 2911 lm | Ra>90 | 4000 K |
| LT-16.0103-S-5-27 |
36,6 W | 3009 lm | Ra>90 | 2700 K |
| LT-16.0103-S-5-30 |
36,6 W | 3168 lm | Ra>90 | 3000 K |
| LT-16.0103-S-5-40 |
36,6 W | 3326 lm | Ra>90 | 4000 K |
Color Finish
Grey
Black
White
Dark Grey
Application
Large Store
Store
Shop Window
Object
Painting
Cafe
Restaurant
